This will be the repository for drawings I generate for narrow gauge locomotives,
rolling stock, and related structures. Other drawings related to narrow gauge and
drawings for trackwork will eventually find their way here.
I have a GIF of the narrow
gauge section of the
Pacific Desert Lines
layout by the
SDSoNS in San
Diego's Balboa Park. The letters at the ends of the areas match together to show
the entire line. It is about 89 feet from the USG mine to the Town of
Tourmaline. All track in visible areas is code 40 hand laid. In the hidden areas
it is Z scale flex track. To see how the narrow gauge part of the layout fits in
with the rest of the layout, see the
GIF of the full
layout.

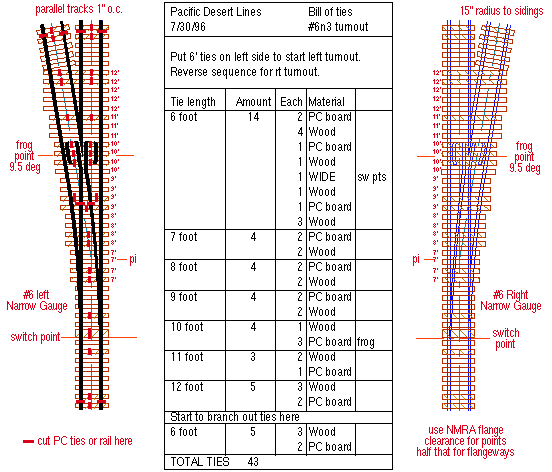

Here is a template for #6 narrow gauge
turnouts, to be constructed from code 40 rail. The instructions for
building the turnouts is on 'da Trains!'
Other drawings of narrow gauge equipment will appear here at whatever intervals it
takes to get them drawn up.
